Aerial hydrogen fuel cell systems


THE WORLD'S MOST ADVANCED
LIGHTWEIGHT FUEL CELL SYSTEMS

WhatsApp Image 2021-10-09 at 3.50.45 PM.jpeg

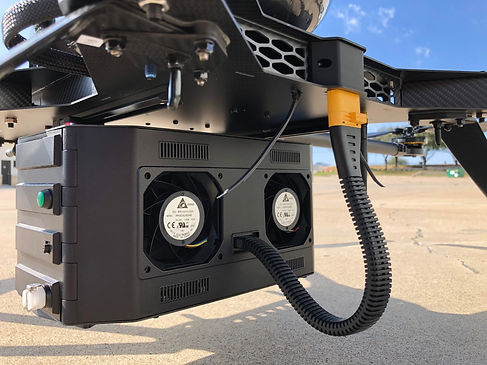

AEROSTAK systems are super lightweight hydrogen energy conversion devices that include a special grade PEM fuel cell stack, control electronics, lightweight casings with integrated air cooling fans, and a hybrid LiPo-compatible hybrid electronic board. The optimized and clean interface makes it easy to manipulate and integrate.

AeroDelft-Team-Reveals-Prototype-Airplan


A-250

  • 250 W rated power300 W peak

  • 22.2 V - 35.2 V voltage range

  • 720 g total system weight (dry)

  • 110 mm x 120 mm x 124 mm

More Details

A-500

  • 500 W rated power, 600 W peak

  • 27 V - 42.8 V voltage range

  • 1.3 kg total system weight (dry)

  • 194 mm x 105 mm x 166 mm

More Details

A-1000 (LV)

  • 1,000 W rated power, 1,200 W peak

  • 30 V - 47.5 V voltage range

  • 2.04 kg total system weight (dry)

  • 254 mm x 170 mm x 125 mm

More Details

A-1000 (HV)

  • 1000 W rated power, 1300 W peak

  • 39.0 V - 61.8 V voltage range

  • 1.8 kg g total system weight (dry)

  • 194 mm x 127 mm x 193 mm

More Details

A-1500

  • 1500 W rated power, 2000 W peak

  • 32.4 V - 51.3 V voltage range

  • 3.5 kg total system weight (dry)

  • 302 mm x 120 mm x 145 mm

More Details

A-2000

  • 2,000 W rated power, 2,300 W peak

  • Tailor-made

More Details

3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE

ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling

AEROSTAK A-250

Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

250 W

300 W

22.2 V - 35.2 V

0 - 13.5 A

0°-35° C

Air (Integrated Fan)

720g

110mm x 120mm x 123mm

0.6 bar to 0.8 bar

99.999%

< 3.8 L/min

< 30s

7S (>100C discharge rate)

DISCLAIMER: The information contained in this tab can change without notice


ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling

AEROSTAK A-500

Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

500W

600W

27 V- 42.8 V

0 - 25 A

0°-35° C

Air (Integrated Fan)

1300g

194mm x 105mm x 166mm

0.6 bar to 0.8 bar

99.999%

< 7.6 L/min

< 30s

7S (>100C discharge rate)

DISCLAIMER: The information contained in this tab can change without notice






ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling

AEROSTAK A-1000 (LV)

Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

1000 W

1200 W

30.0 V- 47.5 V

0 - 40 A

0°-35° C

Air (Integrated Fan)

2040g

254mm x 170mm x 125mm

0.6 bar to 0.8 bar

99.999%

< 16.5 L/min

< 30s

9S (>100C discharge rate)

DISCLAIMER: The information contained in this tab can change without notice

ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling



3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE

3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE

3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE


AEROSTAK A-1000 (HV)

Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

1000 W

1300 W

39.0 V- 61.8 V

0 - 35 A

0°-35° C

Air (Integrated Fan)

1.8kg

194mm x 127mm x 193mm

0.6 bar to 0.8 bar

99.999%

< 16.5 L/min

< 30s

10S (>100C discharge rate)

DISCLAIMER: The information contained in this tab can change without notice



3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE

AEROSTAK A-1500


Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

1500 W

2000W

32.4 V- 51.3 V

0 - 45 A

0°-35° C

Air (Integrated Fan)

3.5 kg

302mm x 120mm x 145mm

0.6 bar to 0.8 bar

99.999%

< 26.0 L/min

< 30s

9 or 10S (>100C)

DISCLAIMER: The information contained in this tab can change without notice

ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling

Hycopter new gen.jpeg

HYCOPTER
powered by AEROSTAK 1500*



3D MODELS FOR UAV DESIGNERS

2D MECHANICAL  DRAWINGS

DETAILED DATASHEET

USER MANUAL

REQUEST QUOTE


AEROSTAK A-2000
*Tailor-made

Rated Power

Peak Power (FC only)

Voltage Range

Current Range

Ambient Temperature

Cooling

Total System Weight (dry)

Stack Size (with casing)

H2 Input Pressure

H2 Purity Required

H2 Max Consumption

Start Up Time

Hybrid LiPo

2000 W

2300W

Tailor-made

Tailor-made

0°-35° C

Air (Integrated Fan)

< 4kg

Tailor-made

0.6 bar to 0.8 bar

99.999%

< 30.0 L/min

< 30s

Tailor-made

DISCLAIMER: The information contained in this tab can change without notice

ACCESSORIES

PPRESSURE REDUCER.png

H2 storage


H2 fueling
